Microcomputer controlled torsion testing machine TNS-DW

Microcomputer controlled torsion testing machine TNS-DW

  • Min.Order Quantity: 10 Sets
  • Supply Ability: 100 Sets per Month
  • Port: qingdao
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2011-05-11
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  jinan
  • Brand Name:  chenxiang
  • Model Number:  TNS-DW

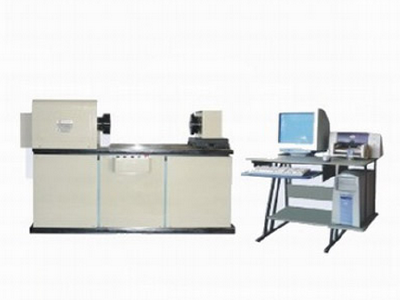

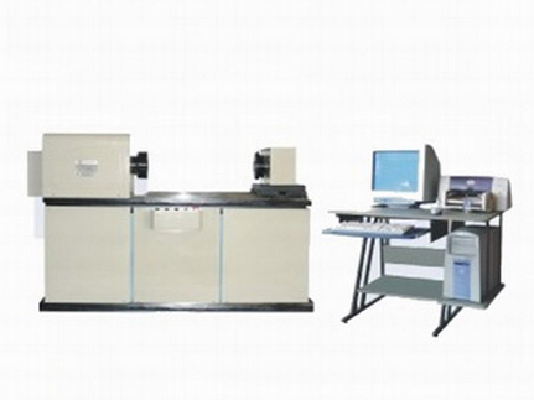

Microcomputer controlled torsion testing machine TNS-DW

Product description:

TNS-DW main features of microcomputer controlled torsion testing machine:

This machine is loaded by the computer control of Japanese imports of AC servo control system, the AC servo motor, cycloidal reducer drives the driving rotating chuck load, torque and torsion angle detection using high precision torque sensor and photoelectric encoder, computer dynamic display test torsion angle torque curve, loading rate, peak stress test etc.. The method meets the requirements of GB10128-88 test method for torsion test at room temperature. This machine is mainly used for the torsion test for metallic materials or non-metallic materials, can also be torsion test of parts or components, aerospace, transportation, building materials industry, scientific research departments, various colleges and universities and enterprises to determine the material mechanics laboratory testing instrument for torsion performance.

The main functions and characteristics of microcomputer controlled torsion testing machine TNS-DW:

Load mode: imported AC servo motor and drive, can be used in two directions of torque;

Torque and torsion angle detection: the use of high-precision symmetric torque sensor, torsion angle detection using high-precision LEC type photoelectric encoder.

Operation: with manual operation (there are reverse manual operation button) and computer operation in two ways;

Based on the special control software under the WINDOWS platform, using the way of human-computer interaction analysis subjects index of the mechanical properties of the material, automatic processing of test data, the dynamic display of the test curve, the test results can be stored, printed, or manual intervention analysis process to improve the accuracy of analysis.


  • Place of Origin:  jinan
  • Brand Name:  chenxiang
  • Model Number:  TNS-DW
