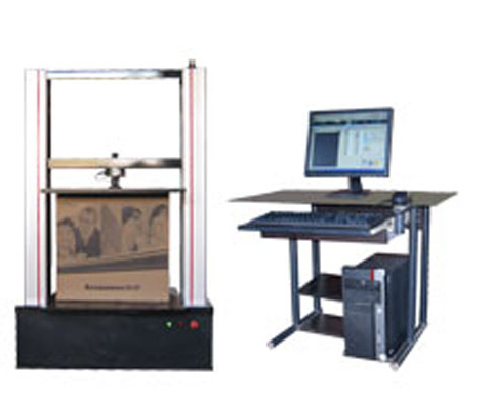

The product is mainly to complete the compression test and stacking test box. Can set the test procedure, data display, curve display and data analysis. Using four sensors to measure the test force, the sensor base to adjust the level, to ensure that the test in the best position, the most objective data measurement.

Main technical indicators:

1, capacity: 50kN

2, force measurement way: high precision sensor

3, display mode: computer display

4, display parameters: can show the amount of compression, displacement, the highest value, the maximum force, test values, the current force and rupture value, the test curve.

5, printing: with the printer and print function

6, accuracy: less than 1%

7, test area: 1200X1200X1000mm

8, test speed: (0.01-500mm/min adjustable)

9, power: 220V, 50/60Hz

10, volume: 1860 (W) X1000 (D) x2003 (H) mm

11, weight: About 1000kg
